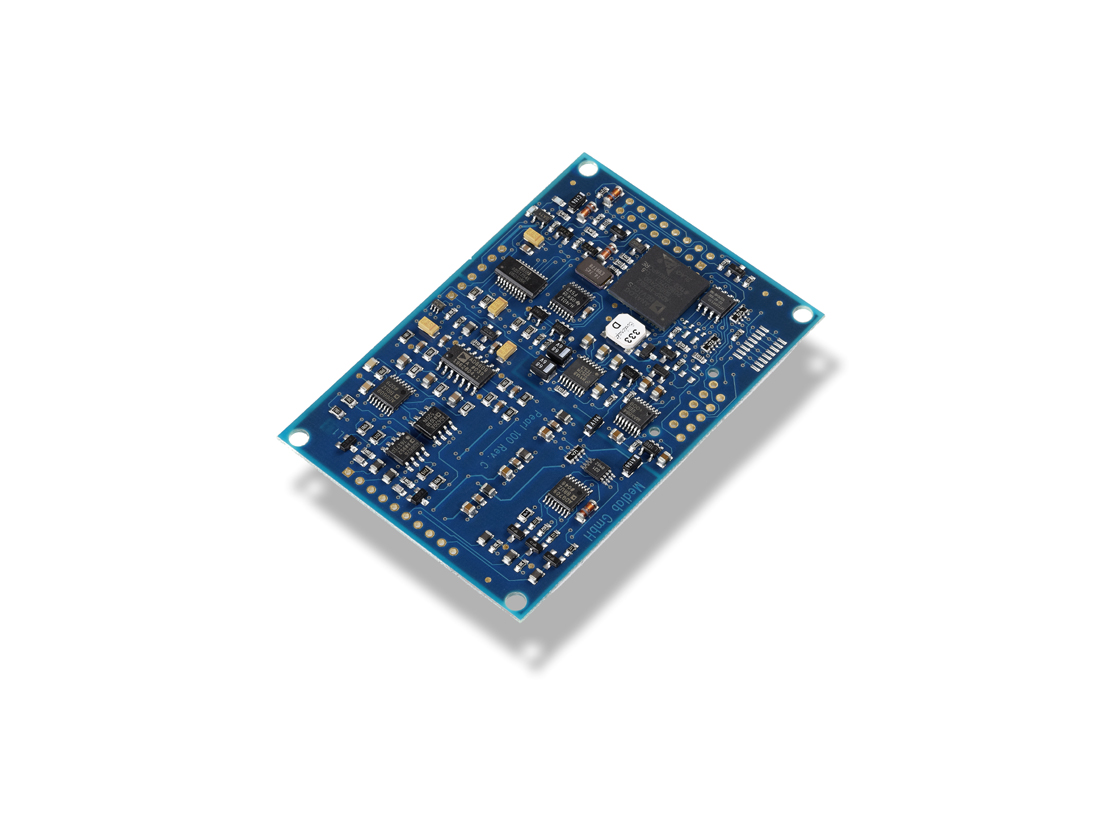

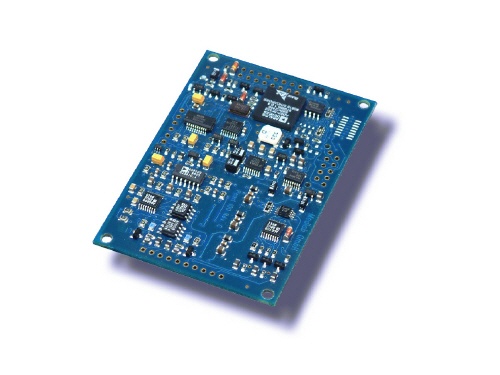

PEARL 100
SpO2 Module with Optimized Artefact Suppression
- Advanced signal processor technology with fourth generation algorithm and artefact suppression
- Algorithm: "PEARL"(**), Medlab’s new SpO2 technology
- Lock-in based signal recovery down to a pulsation of 0.025 % (AC/DC ratio)
- Data Processing: In the time domain
- Complies with ISO 80601-2-61*
- Small size of 77 x 53 mm, max. height 6 mm, electrically and mechanically compatible with the EG00302
- Single power supply, 3.3 - 5.5 V DC, 90 mW (@3.3 V)
- High flexibility in interface protocols
- Measures pulse rates from 30 - 250 bpm
- Measures SpO2 from 0 .. 100 % (no accuracy stated for values less than 70 %)
- Isolation kit according to ISO 80601-2-61, patient connection type BF available
- Clinical validation data available to support certification and registrations of the final product
*See here for further explanation
** Pulse Enhancement Artefact Rejection Logic
Data Sheet
Download data sheet [440 KB] in PDF format.
Technical Manual
Technical Manual [704 KB] in PDF format
Evaluation Software
Test Software for evaluation of the PEARL100 board with full source code and compiled program in Visual Basic and Visual C#.
Download and extract into one directory:
Visual Basic 6.0, V1.51 [97 KB]
Visual C# .NET 2.0, V2.0.0.7 [177 KB]
