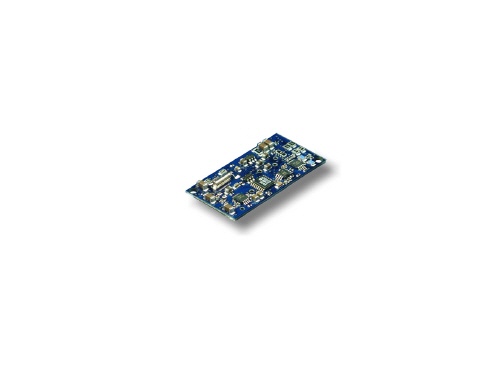

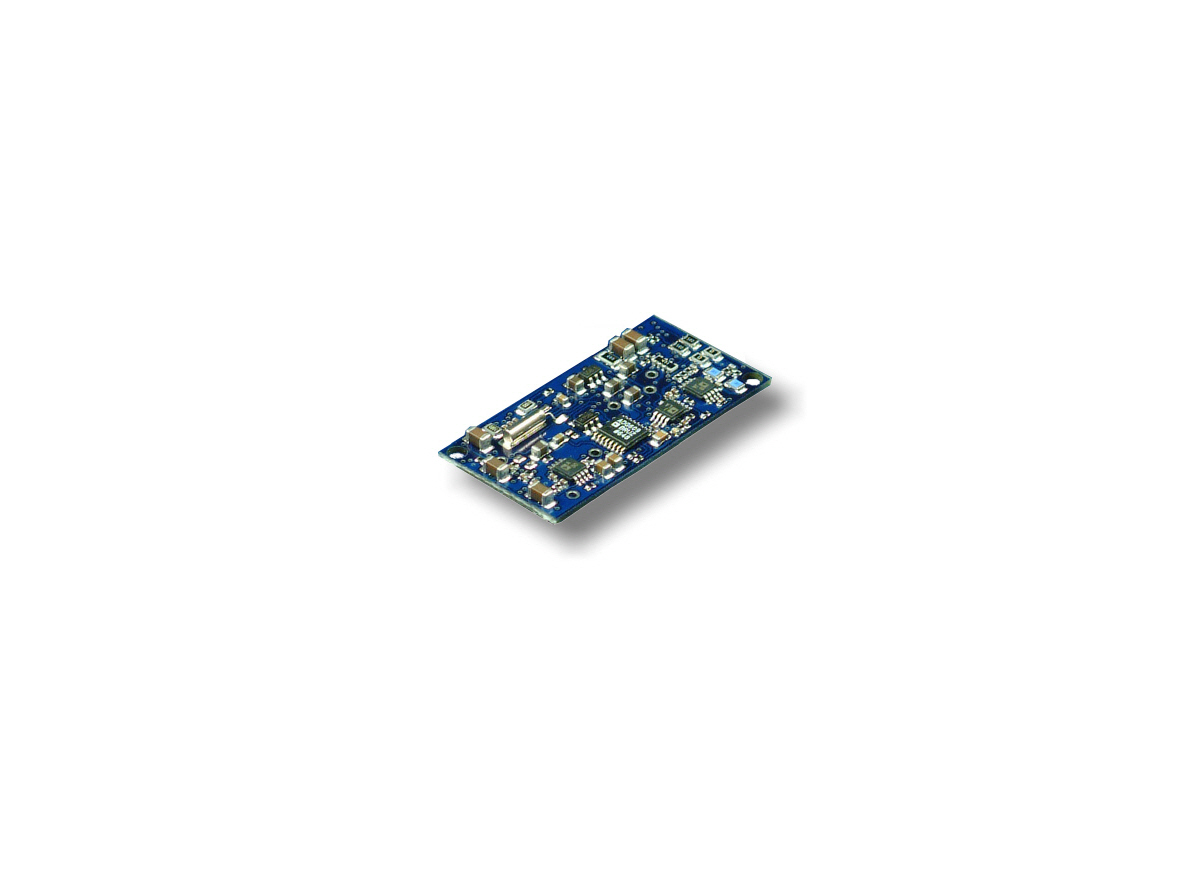

Module Optimized for Low Power Consumption

  • Low cost and high performance, stamp sized
  • Advanced 32-Bit processor technology with fourth generation algorithm, recommended for infants and adults
  • Small size (40 x 20 mm), maximum height 6 mm
  • Complies with ISO 80601-2-61*
  • Lock-in based signal recovery down to a pulsation of 0.03 % (AC/DC ratio)
  • Ultra low noise design for highest performance on centralized patients
  • Greatly improved suppression of ambient light and electromagnetic disturbances
  • Easily integrable into handheld and desktop devices
  • Single power supply (3.3 V DC), 50 mW
  • CMOS level serial asynchronous interface
  • Transmission of SpO2, pulse rate, plethysmographic waveform, status information and perfusion index
  • High flexibility in interface protocols
  • Measurement of pulse rate between 30 .. 250 bpm
  • Measurement of oxygen saturation between 0 and 100 %
  • Complete line of probes available
  • Isolation kit according to ISO 80601-2-61 available (patient connection type BF)
  • Clinical validation data available to support certification and registrations of the final monitor

*See here for further explanation

Data Sheet

Download data sheet [247 KB]

Technical Manual

Download technical manual [317 KB] in PDF format.

Evaluation Software

Test Software for evaluation of the EG00352 board with full source code and compiled program in Visual Basic and Visual C#.

Download and extract into one directory:
Visual Basic 6.0, V1.51 [97 KB]
Visual C# .NET 2.0, V2.0.0.5 [177 KB]

Order Information

Delivery Order Number
Test Kit:
EG0352 OEM Board
P-200 Finger Probe
Evaluation carrier board
RS232 PC Cable
Evaluation software
EG0352 OEM Board
P-200 Finger Probe
