EG12000

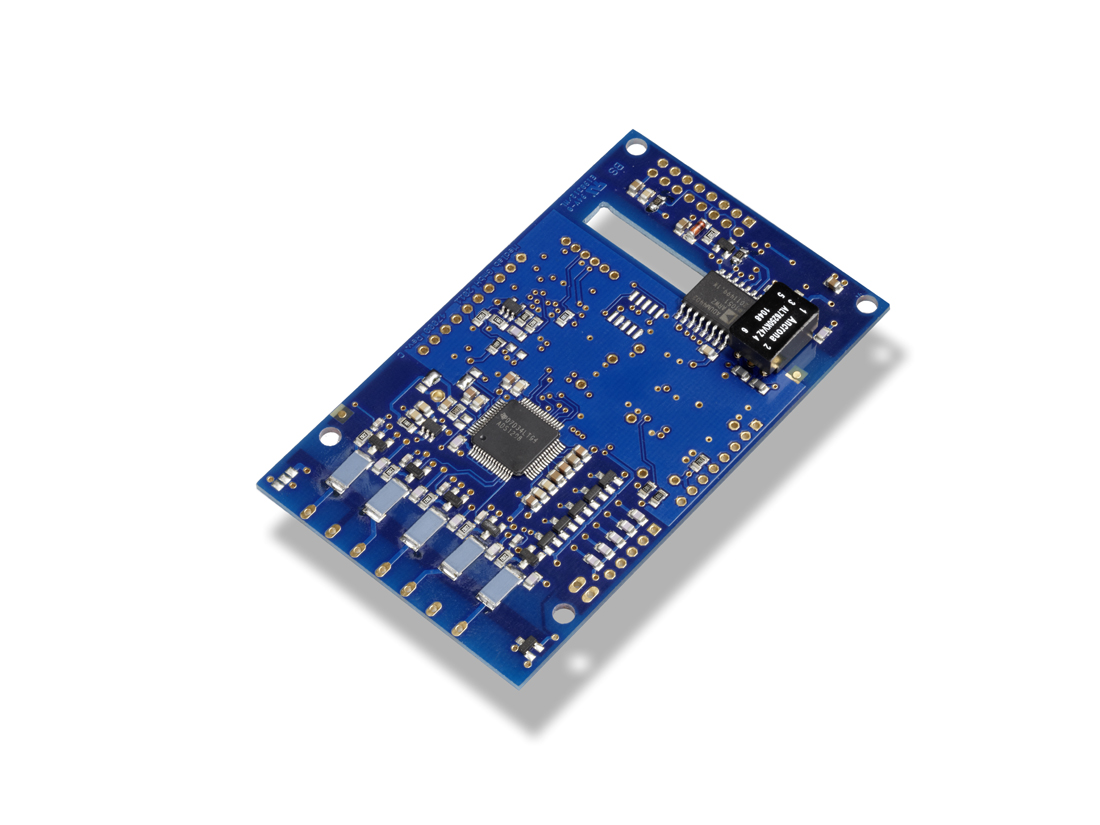

Twelve Channel EKG Module

• Twelve Channel EKG Module
• Size: 88 x 53 mm
• Mechanically compatible to the three and five channel version
• Power consumption: 250 mW at 5 V
• Serial UART interface
• Integrated, CF-grade galvanic patient isolation
• Complies with 60601-2-27*
• Three lead cable can be used to display I or II or III
• Four lead cable can be used to display I, II, III, aVR, aVL, aVF
• Five lead cable can be used to display I, II, III, aVR, aVL, aVF and one C lead
• Ten lead cable can be used to display I, II, III, aVR, aVL, aVF, C1, C2, C3, C4, C5, C6
• Optional respiration measurement using the impedance method
• Limb leads defibrillation protected
• Detection and measurement of pulse: 30 - 248 bpm
• Pulse: +- 1 %, +- 1 digit
• Four amplification stages
• Four curve transmission speeds
• "Lead-Off" detection for each single electrode
• Optionally simulated output of an EKG trace
• Pulse trigger output pin
• Delay of pulse trigger to R-wave adjustable

*See here for further explanation

Data Sheet

Download data sheet [357 KB] in PDF format.

Technical Manual

Download technical manual [363 KB] in PDF format (Version 1.05).

Evaluation Software

Test Software for evaluation of the EG12000 board with full source code and compiled program.

Download and extract into one directory:
Visual Basic 6.0, V1.3 [477 KB]
Visual C# .NET 2.0, V2.0.0.16 [303 KB]

Order Information
