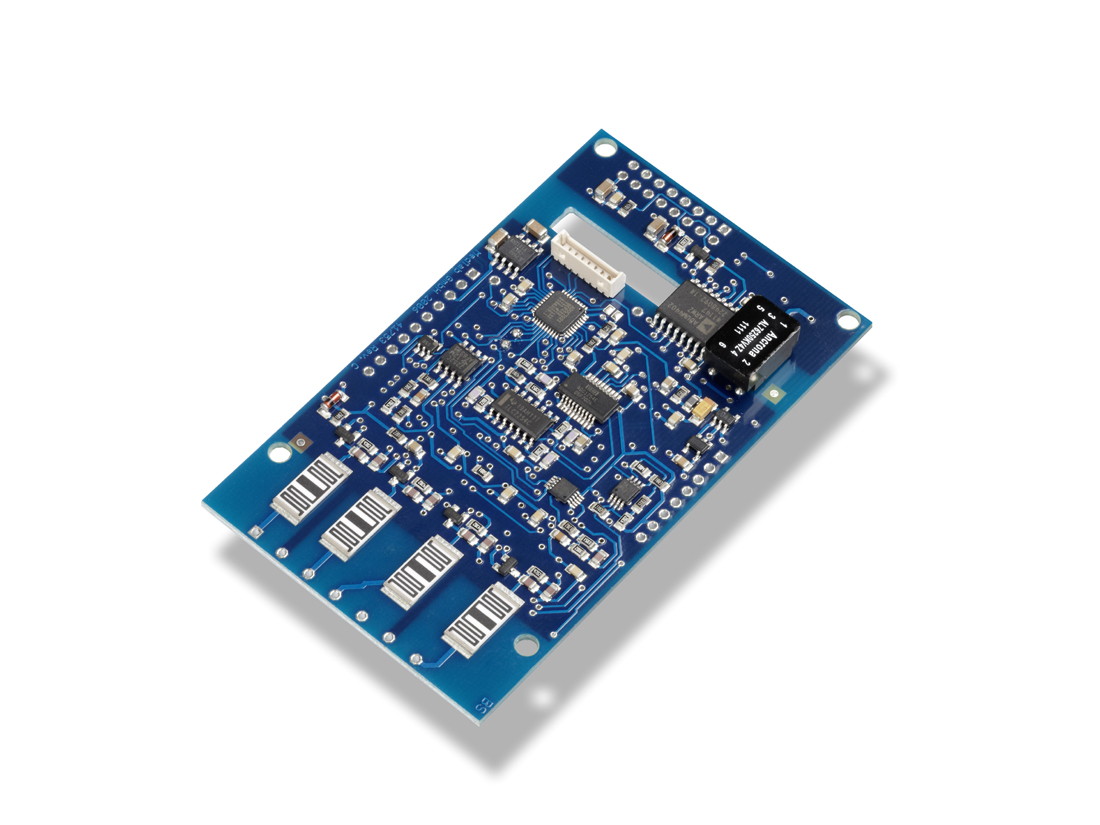

Five Channel EKG Module

  • Size: 88 x 53 mm
  • Power consumption: 200 mW at 5 V
  • Seven channel EKG (5 electrodes)
  • Complies with 60601-2-27*
  • Three lead cable can be used (1 channel displayed - I or II or III)
  • Four lead cable can be used (6 channels displayed - I, II, III, aVR, aVL, aVF)
  • Five lead cable can be used (7 channels displayed, see below)
  • Can display I, II, III, aVR, aVL, aVF, V1
  • Optional respiration measurement using the impedance method
  • Defibrillation protected
  • Galvanic isolation on Board
  • Detection and measurement of pulse: 30 - 248 bpm
  • Pulse: +- 1 %, +- 1 digit
  • Four amplification stages
  • Four curve transmission speeds
  • "Lead-Off" detection for each single electrode
  • Optionally simulated output of an EKG Trace
  • Pulse trigger output pin
  • Delay of pulse trigger to R-wave adjustable
  • Mechanically compatible to the three channel version
  • Serial UART interface

*See here for further explanation

Data Sheet

Download data sheet [411 KB] in PDF format.

Technical Manual

Download technical manual [422 KB] in PDF format (Version 1.12).

Evaluation Software

Test Software for evaluation of the EG05000 board with full source code and compiled program.

Download and extract into one directory:
Visual Basic 6.0, V1.2 [450 KB]
Visual C# .NET 2.0, V2.0.0.16 [303 KB]

Order Information

Delivery Order Number
Test Kit:
EG05000 OEM Board
5 Lead ECG cable
5 Lead AAMI Amp Adapter
PC / Power Cable
Evaluation software
EG05000 OEM Board
for Measurement of Respiration Rate
