EG00751

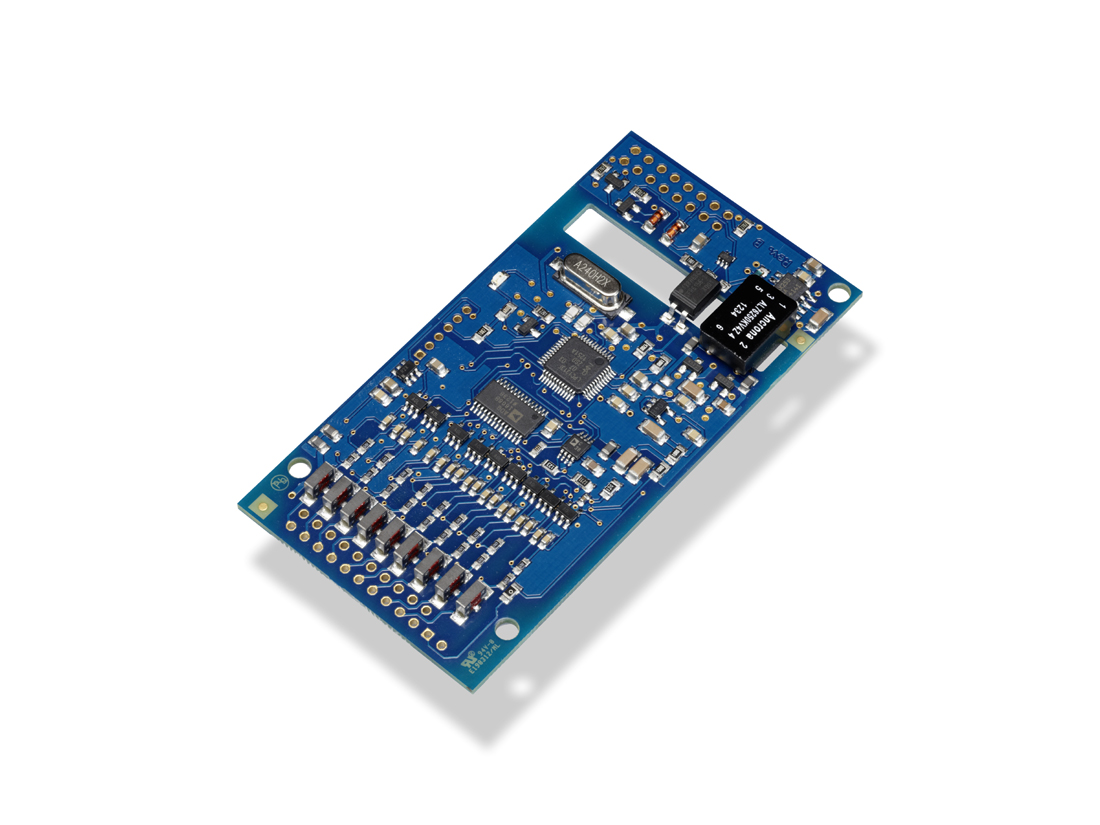

Module for Measurement of Body Temperature

  • Temperature OEM module for medical and industrial purposes
  • Compatible with all YSI series 400 type probes
  • 9 Temperature Channels, 1 Reference channel (38.81 °C)
  • Measurement range: 15.90 .. 59.00 °C
  • Resolution 0.01 °C
  • Accuracy: between +/- 0.01 °C and +/- 0.02 °C (+ probe tolerance)
  • Power loss in NTC less than 100 µW (nearly no self-heating)
  • Serial UART type interface has both TTL and RS232 level outputs
  • Packet type output format, with packet checksum
  • 4000 Volt RMS isolation of patient side (CF Type)
  • Warm up time less than 10 seconds
  • Small size: PCB 84.5 mm x 44 mm x 10 mm
  • Low power: less than 35 mA @ 5 Volts

Data Sheet

Download data sheet [137 KB] in PDF format.

Technical Manual

Download technical manual (V 1.3) [368 KB] in PDF format.

Evaluation Software

Test Software with full source code and compiled program for evaluation.

Download and extract into one directory:
Visual C#, V1.3 [112 KB]

Order Information

Delivery Order Number
Test Kit:
EG00751 OEM Board
PC / Power Cable
Evaluation software
00774-00-01-99
EG00751 OEM Board
00774-00-01-00
