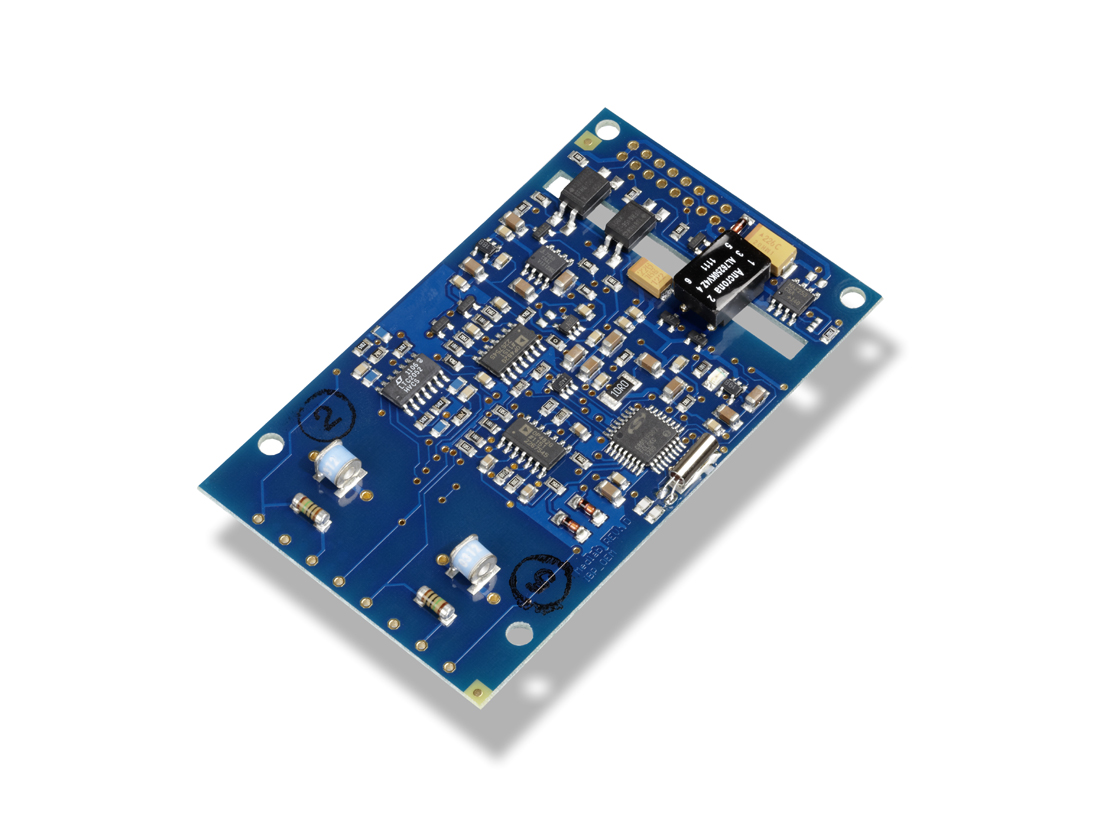

EG02000

Invasive Bloodpressure Measurement

This two channel module can be used with all probes that are calibrated for the standard resolution of 5µV/V/mmHg.

FEATURES

  • Works with standard 5 µV/V/mmHg transducers
  • Two channels
  • Range -99 to 300 mmHg
  • Zero Level Adjustable between -100 and +100 mmHg, independently for each channel
  • Can be used to monitor static pressures or waveforms
  • Single power supply, 5 Volts, 270 mW without transducers
  • Approx. 600 mW with two transducers
  • Credit card size, 88 mm x 53 mm x approx. 10 mm thick
  • Serial, asynchronous interface 9600 Baud
  • Waveform, status information and numeric pressure transmission.
  • Full recognition and calculation of systolic, diastolic and mean pressure
  • Pulse rate detection on waveforms
  • Module can receive commands for zeroing, waveform transmission speed, simulated waveform output aso.
  • Fully isolated according to 60601-1
  • Complies with 60601-2-34*
  • Defibrillation protected
  • Availability: Full Production


*See here for further explanation

Data Sheet

Download data sheet [190 KB] in PDF format.

Technical Manual

Download technical manual (V 2.03) [269 KB] in PDF format.

Evaluation Software

Test Software for evaluation of the EG02000 board with full source code and compiled program in Visual Basic or Visual C#.

Download and extract into one directory:
Visual Basic 6.0, V1.01 [72 KB]
Visual C# .NET 2.0, V2.0.0.5 [226 KB]

Order Information

Delivery Order Number
Test Kit:
EG02000 OEM Board
PC / Power Cable
Evaluation software
00750-01-02-99
EG02000 OEM Board
00750-01-02-00
